Supermicro SYS-E403-14B-FRN2T Review: The Ultimate 1P Edge Server
▼ Summary
– The Supermicro SYS-E403-14B-FRN2T is a compact IoT/edge server designed to provide high connectivity and GPU compute capabilities.
– It features a front I/O design with redundant power supplies, hot-swappable NVMe SSDs, multiple USB ports, and an IPMI management port.
– The server includes onboard dual 10Gbase-T networking via an Intel X550 chipset and three full-height PCIe slots for expansion.
– Its fully front-serviceable design, with all cables and components accessible from the front, allows installation in space-constrained racks.
– The system is built in a small chassis measuring 4.62″ x 10.5″ x 16″, emphasizing its suitability for edge deployment environments.
The Supermicro SYS-E403-14B-FRN2T represents a significant step forward in edge computing hardware, delivering robust performance and extensive connectivity within a remarkably compact chassis. This IoT server leverages an onboard Intel Xeon 6 CPU to provide substantial processing power, making it an ideal solution for demanding edge deployments that require both computational muscle and flexible I/O options. Its front-serviceable design addresses common real-world installation challenges, allowing it to operate efficiently in space-constrained environments where rear access is limited or impossible.

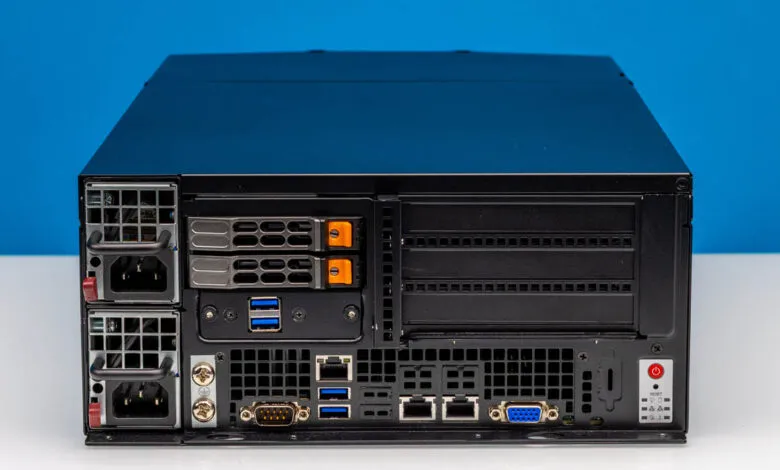

A key differentiator for this system is its physical footprint. Measuring just 4.62 inches wide, 10.5 inches tall, and 16 inches deep, it presents a tidy, space-efficient profile. The design philosophy centers on front-panel accessibility, consolidating critical components for easier maintenance. The front left section houses redundant power supplies alongside two hot-swappable 2.5-inch NVMe SSD bays, ensuring both power resilience and rapid storage serviceability.
Moving across the front panel, users will find two USB 3 Type-A ports. It is worth noting that some other models in the E403 series utilize USB 2.0 ports here, making this an upgraded connectivity point. Adjacent to the grounding points, the panel features a serial port, two additional USB Type-A ports, and a dedicated IPMI management port for comprehensive out-of-band server control.
Network connectivity is handled by an Intel X550 chipset, which supplies onboard dual 10Gbase-T networking for high-speed data transfer. A VGA port sits beside the power button and a cluster of status LEDs. Perhaps one of the most compelling hardware features is the inclusion of three full-height PCIe slots. This expansion capability grants exceptional flexibility, allowing for the addition of specialized networking cards, GPU compute accelerators, or other peripheral cards to tailor the server to specific edge applications.
This platform shares design DNA with other specialized systems in Supermicro’s lineup, such as the IP65-rated outdoor edge system, emphasizing its role in versatile and sometimes harsh deployment scenarios. The rear of the chassis is notably simple, containing only cooling fans. This clean rear panel is a direct result of the fully front-serviceable philosophy. By locating all cables, power inputs, and serviceable components on the front, the server can be installed in racks where there is no clearance for rear access, a frequent constraint in edge networking cabinets and telco installations.
A quick inspection of the opposite side panel reveals no additional service points, reinforcing the streamlined, front-access design. To truly understand the capabilities and internal layout of this edge server, we must next look inside the chassis and examine its core components and construction.
(Source: Serve The Home)
