Shape-Shifting Material Unlocked by a Simple Pull
▼ Summary
– Researchers have developed a new material, inspired by the Japanese paper art kirigami, that transforms from a flat grid into a 3D structure when a string is pulled.

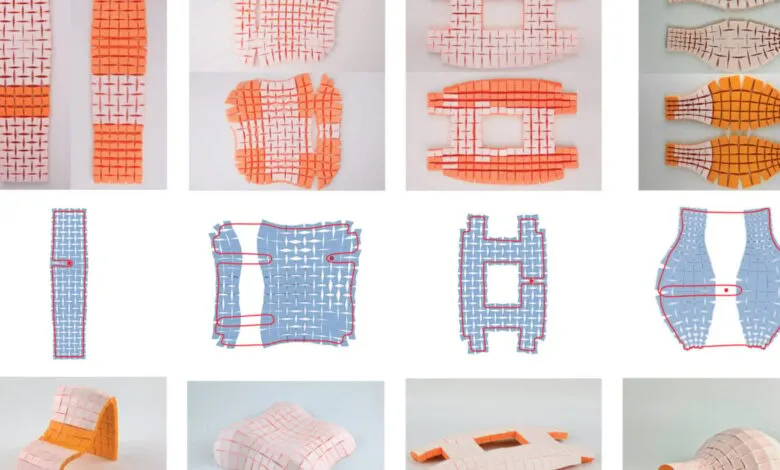

– An algorithm translates a user’s 3D design into a flat pattern of tiles and calculates an optimal string path for smooth, single-pull actuation.
– The material uses an auxetic mechanism, meaning it becomes thicker when stretched and thinner when compressed.
– The team successfully created real-life prototypes, including a functional, human-sized chair made from laser-cut plywood.
– The method is accessible and fabrication-agnostic, with potential applications ranging from medical devices to space habitats, though scaling presents future challenges.
The boundary between mathematics and artistic expression is remarkably thin, a principle that extends powerfully into the realm of material science. Researchers have developed a novel shape-shifting material that begins as a simple, flat grid and transforms into complex three-dimensional structures with a single pull of a string. Inspired by the Japanese paper art of kirigami, this innovation holds significant promise for creating transportable medical devices, foldable robotics, and even modular habitats for space exploration. The system’s elegance lies in its simplicity, translating intricate designs into functional, deployable objects through a clever computational algorithm.
This art-inspired algorithm acts as the core engine behind the material. Users provide a desired 3D shape, and the software automatically converts it into a flat pattern of interconnected quadrilateral tiles. This process mirrors the kirigami artist’s practice of strategically cutting paper to encode it with specific mechanical properties. The transformation relies on an auxetic mechanism, where the structure paradoxically expands in width when stretched and contracts when compressed. The algorithm’s final crucial step is to compute the most efficient path for a single string, connecting key lift points across the surface to ensure the entire grid morphs into the target form with minimal friction and one smooth tug.
The simplicity of the actuation is a major advantage of this approach. Once the design is input, the system handles all complex calculations, making the technology highly accessible. After extensive digital simulations, the research team moved to physical prototypes, successfully creating items like medical splints and curved, igloo-like shelters. Demonstrating the method’s versatility, they fabricated a full-scale, deployable chair from laser-cut plywood. This chair was not only easily assembled with a pull but also proved sturdy enough to support a person’s weight.
While scaling the technique for large architectural projects will present unique engineering hurdles, the foundational method is both robust and user-friendly. The researchers are actively investigating solutions for these challenges while also exploring miniaturized applications. The ultimate goal is to empower a broad range of users, from engineers to artists, to harness this technique for building diverse, practical structures that spring to life from a flat sheet.
(Source: Gizmodo)
